70-th - Light orgel 2
When I was grow up, al over the world was Discotec very famous. Of course it inspire the electronics too. If You had money enough, You could by everything, if not, You have to built it yourself.
In this time everybody want's to have:
- a fine tape recorder
- a fine LP player
- mixer
- a light orgel
and similar electronics too.
I've built some of the links on the following pages. As mentioned above, these shematics did not survive due to the unavailable digital archiving, so here I have taken similar shematics on the Internet based on the revitalization. The following link, which is very similar to what I have built, is here.

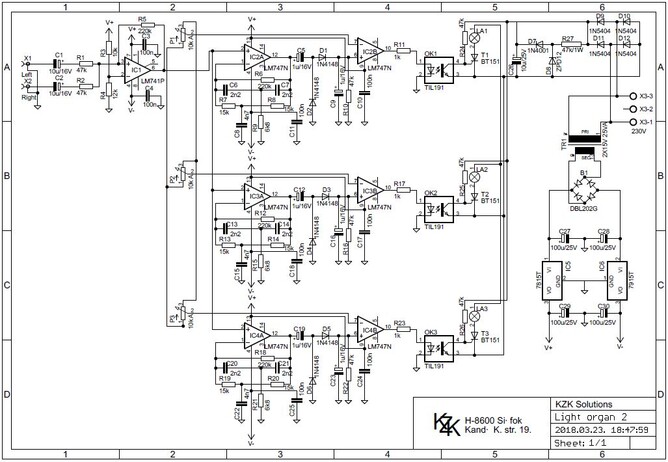

Here a second shematics for the thema light orgel. I can suggest it for everybody, who will be interested to built it. As I wrote, so I made a similar too.
By clicking on the picture the shematic can be downloaded as PDF format, but I don't offer PCB design for.
