70-th - Light orgel 3

When I was grow up, al over the world was Discotec very famous. Of course it inspire the electronics too. If You had money enough, You could by everything, if not, You have to built it yourself.

In this time everybody want's to have:

- a fine tape recorder
- a fine LP player
- mixer
- a light orgel

and similar electronics too.

Some of the shematics on the fallowing pages I built too.

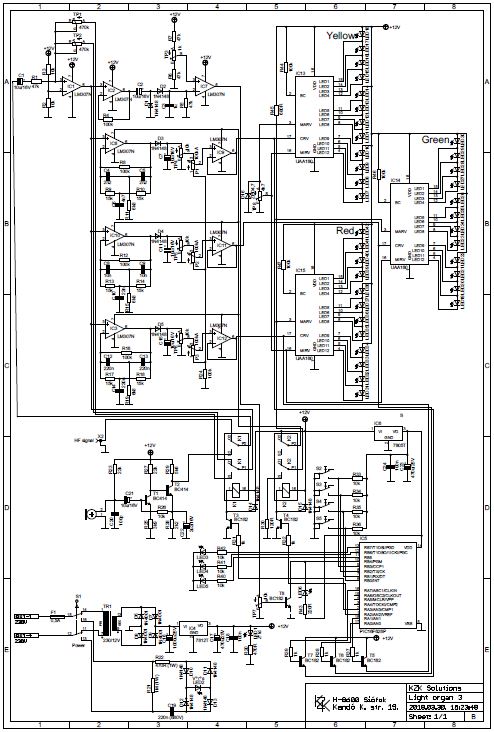

Here a third shematics for the thema light orgel. I can suggest it for everybody, who will be interested to built it.

By clicking on the picture the shematic can be downloaded as PDF format, but I don't offer PCB design for.
