Low noise preamp
This amplifier is made to connect all my HiFi equipments without changing all the time the connections. As it is visible it has the following inputs:

- Phono input (with RIAA correction)
- CD input
- Tuner input
- Tape input

The output has an amplification of one and all inputs (without the tape) can be redirected to the tape output.

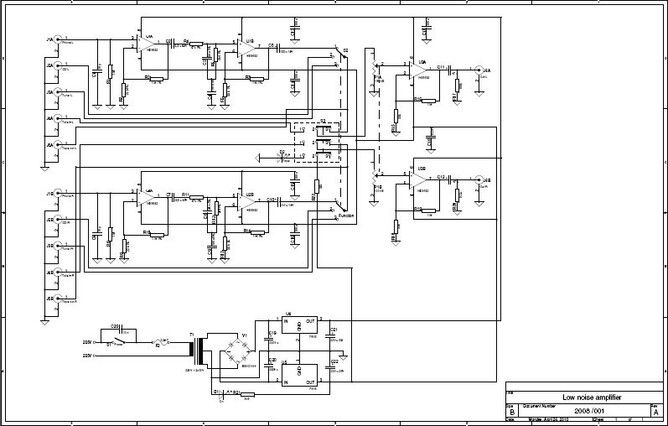

By clicking on the picture the shematic can be downloaded as PDF format, but I don't offer PCB design for.
